SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P520 SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P520

The IRIS Model P520 is a state of the art flame signal processor. It is designed to be used with the IRIS S5xx, S55x and S55xB series of Viewing Heads.

Please call or email for pricing and availability at 281-421-1321 or [email protected].

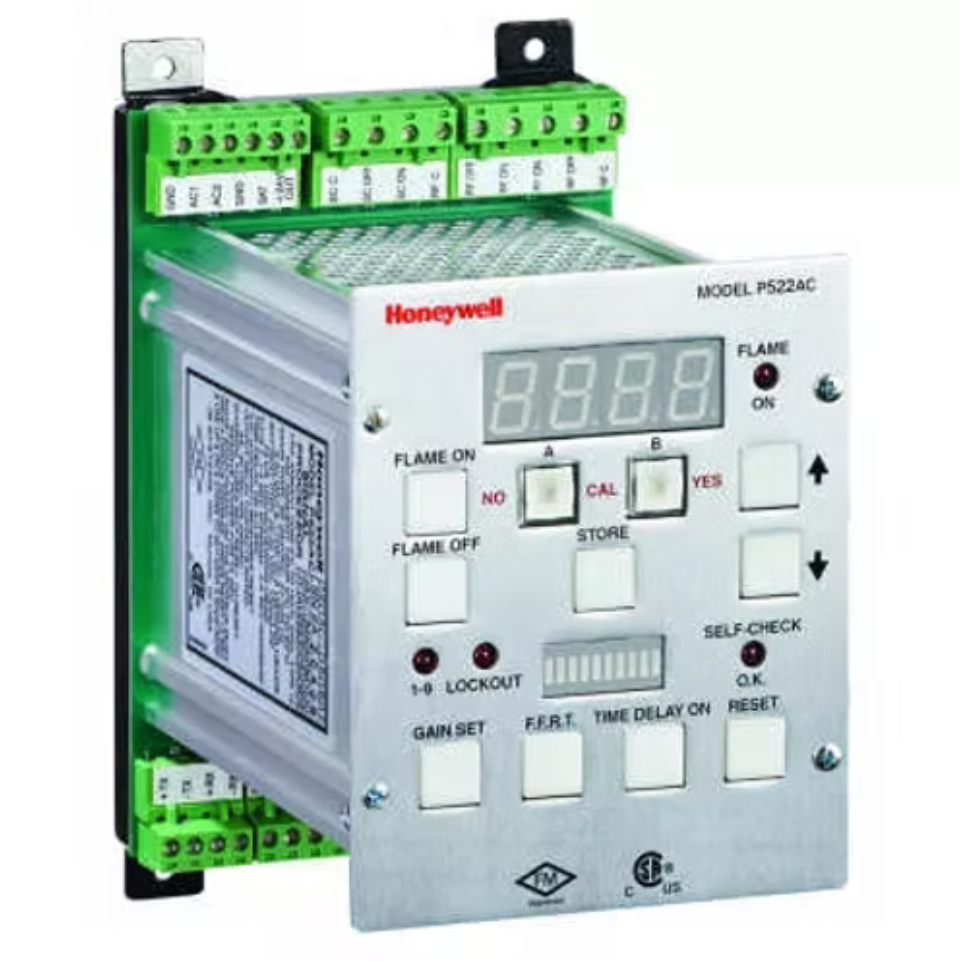

SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P522 (REPAIR ONLY) SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P522 (REPAIR ONLY)

The IRIS Model P522 is a state of the art flame signal processor. It is designed to be used with the IRIS S5xx, S55x and S55xB series of Viewing Heads.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P531 SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P531

The IRIS Model P531 Signal Processor provides a lower cost alternative to the Model P532, as it is basically the same processor without the integrated front panel user interface.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P532 SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: P532

The IRIS P532 uses a Dual Processor system to provide the ability to monitor up to Three viewing heads simultaneously. Front panel information is displayed by large, bright, three color alphanumeric dot matrix displays.

With Automatic Viewing Head detection, the P532 is also capable of monitoring UV and IR separately.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: Model 700 SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: Model 700

The IRIS Model 700DC and Model 700AC are single-channel flame scanners when combined with an IR (Infrared) or UV (Ultraviolet) viewing head from either the 7xx or 8xx series IRIS viewing heads.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: Model 800 SIGNAL PROCESSOR FOR FLAME MONITOR SYSTEM, P/N: Model 800

The Model 800 Signal Processor, together with the Model S802 (IR) or S806 (UV) Viewing Head provides a truly compact, programmable, single channel flame monitoring system.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Models S7XX/S8XX FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Models S7XX/S8XX

MODELS S702, S702 PF, S702 HF, S702 HF PF, S706, S706 PF, S802, S802 HF, S806

The IRIS Models S7xx and S8xx series of Viewing Heads are compact cylindrical units that are easily detachable from their Delrin mountings.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S506 FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S506

The IRIS Model S506 is a UV (ultraviolet) Viewing Head that responds to the very short wavelength radiation emitted by flames.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S509 FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S509

The S509 is a "two color" flame monitor that employs both a Si (silicon) and PbS (lead sulfide) photo detector. The Si element is a "see through" element which is in front of the PbS element.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S511 FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S511

The S511 viewing head employs a Ge (germanium) photo detector which responds to a spectral range of 750-1900nm (nanometers).


Please call or email for pricing and availability at 281-421-1321 or [email protected].
FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S512 FLAME SCANNER VIEWING HEAD FOR FLAME MONITORS, P/N: Model S512

The S512 viewing head incorporates a PbS photo detector which has a spectral response that ranges from 1000-3000 nm (nanometers).


Please call or email for pricing and availability at 281-421-1321 or [email protected].

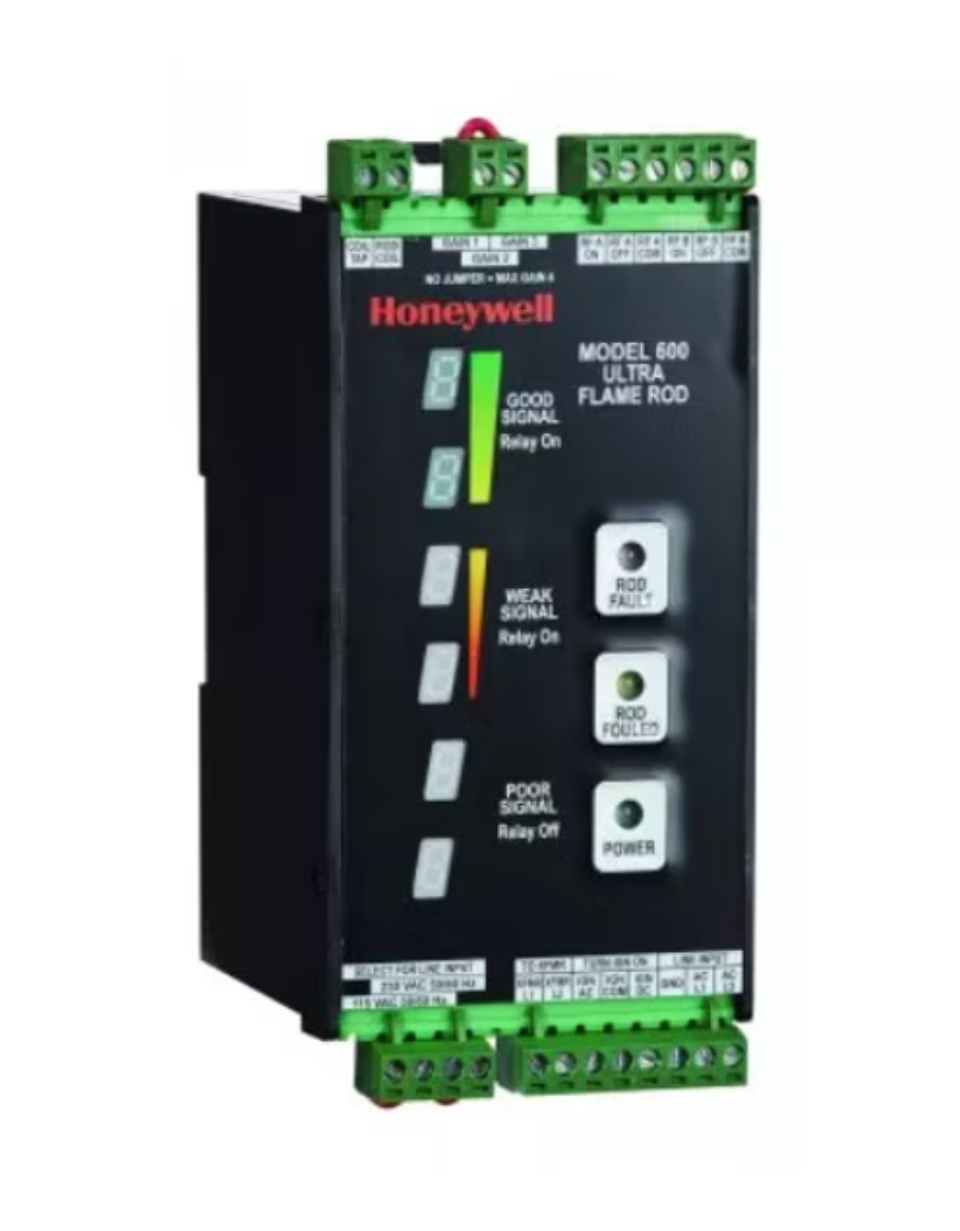

FLAME ROD FLAME DETECTOR , P/N: Model 600U FLAME ROD FLAME DETECTOR , P/N: Model 600U

The IRIS Model 600 Ultra Flame Rod is a reliable Flame Detecting system based on the proven principle of measuring rectified current flow through a flame rod when a flame touches it.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
Signal Processor for Watchdog III, P/N: P222 Signal Processor for Watchdog III, P/N: P222

The model P222 signal processor uses advanced microprocessor technology for detection and monitoring of Flare Stacks.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
INFRARED PYROMETER REMOTE TEMPERATURE MEASUREMENT SYSTEM FOR SULFUR RECOVERY FURNACES, P/N: P905 INFRARED PYROMETER REMOTE TEMPERATURE MEASUREMENT SYSTEM FOR SULFUR RECOVERY FURNACES, P/N: P905

The IRIS Model P905 and 950S Infrared Temperature Measurement Pyrometer was designed specifically for continuous-duty monitoring of the high temperatures in Sulfur Reactor furnaces.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
IRIS High Energy Ignitor, P/N: GHE IRIS High Energy Ignitor, P/N: GHE

The IRIS GHE High Energy Ignitor is a non fouling high energy device, designed to directly ignite all liquid and gaseous fuels.

The High current Arc is able to ignite any fuel and capable of "burning" through all sorts of dirt and contamination at the Arc Probe tip.

Please call or email for pricing and availability at 281-421-1321 or [email protected].
IRIS High Tension Ignitor, P/N: GE IRIS High Tension Ignitor, P/N: GE

The IRIS High Tension Ignitor is designed to provide reliable ignition and or warm up when and where required. It can be applied to boiler applications from industrial to utility lime and cement kiln heaters, etc.

The multi-stage ignition will provide a dependable and reliable source of ignition whenever called upon regardless of the conditions.

Please call or email for pricing and availability at 281-421-1321 or [email protected].
Iris Flame Scanner, P/N: S550BE Iris Flame Scanner, P/N: S550BE

The IRIS Model P522 is a state of the art flame signal processor. It is designed to be used with the IRIS S5xx, S55x and S55xB series of Viewing Heads.


Please call or email for pricing and availability at 281-421-1321 or [email protected].
